Rotating welding positioner turntable, stable welding turntable operator 10/5 kg, 0-90° welding rotary table welding positioner for round welding

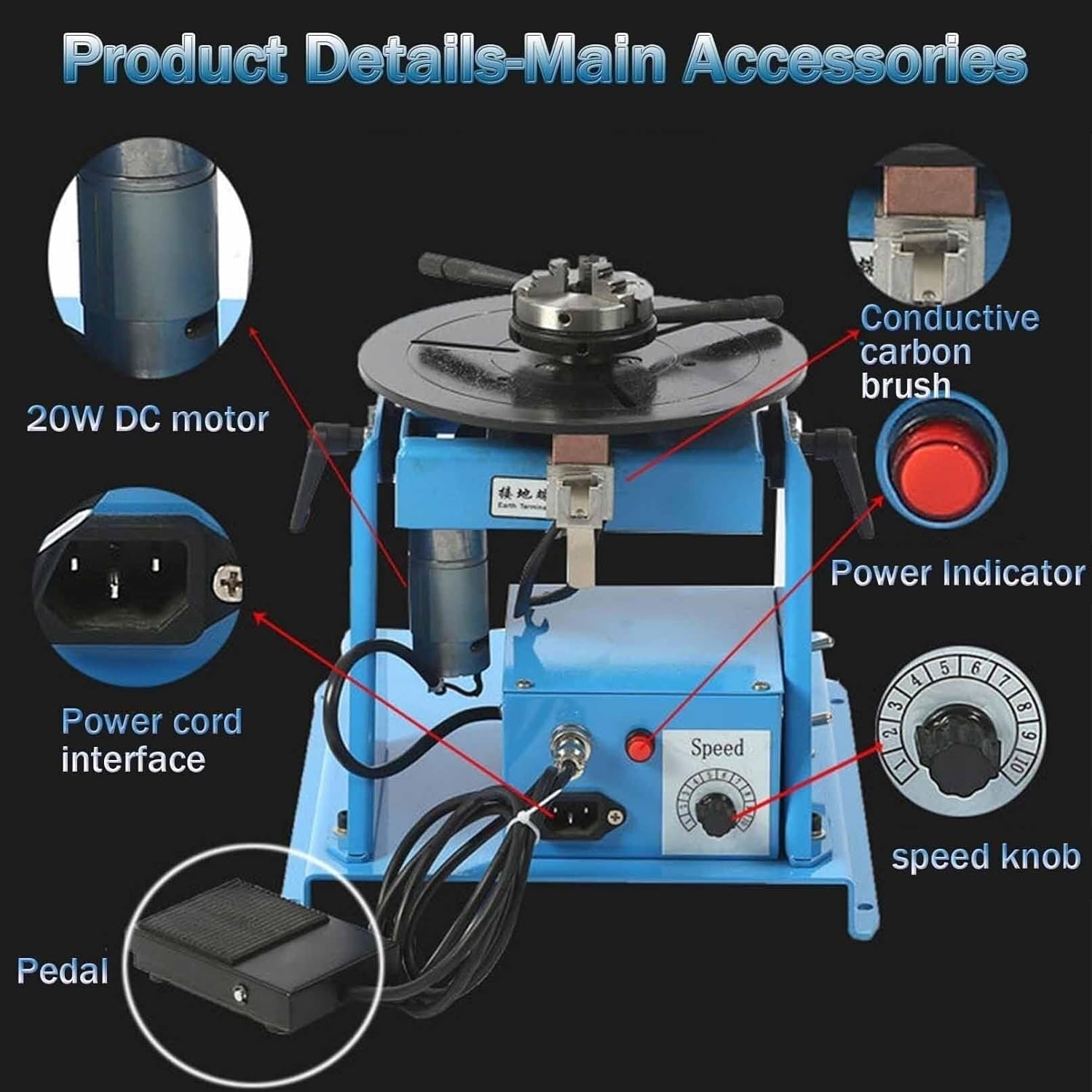

Input voltage: 220V 50HZMaximum load: 10/5kgWorkbench tilt angle: 0-90°Workbench diameter: 180MMWorkbench speed: 2-10/1-7 rpmWelding current: 80ADrive motor: DC24V 20WWorkbench flip: manualRotation motor: 20WDimensions: 320*270*230mm

• [Easy to use] The fixture and the workbench adopt a simple mechanical connection method with high positioning accuracy; the structure is precise and easy to use.
• [Stepless speed regulation] The rotating mechanism of the welding positioner is driven by a 20W DC motor, which can achieve stepless speed regulation.
• [Small and light] The welding range of the rotating table is 0~90°, and the flip angle locking is safe and stable. It is suitable for small workpieces and can achieve welding at any angle.
• [Easy to operate] The rotating table is rotated by a foot switch, which is easy to operate.

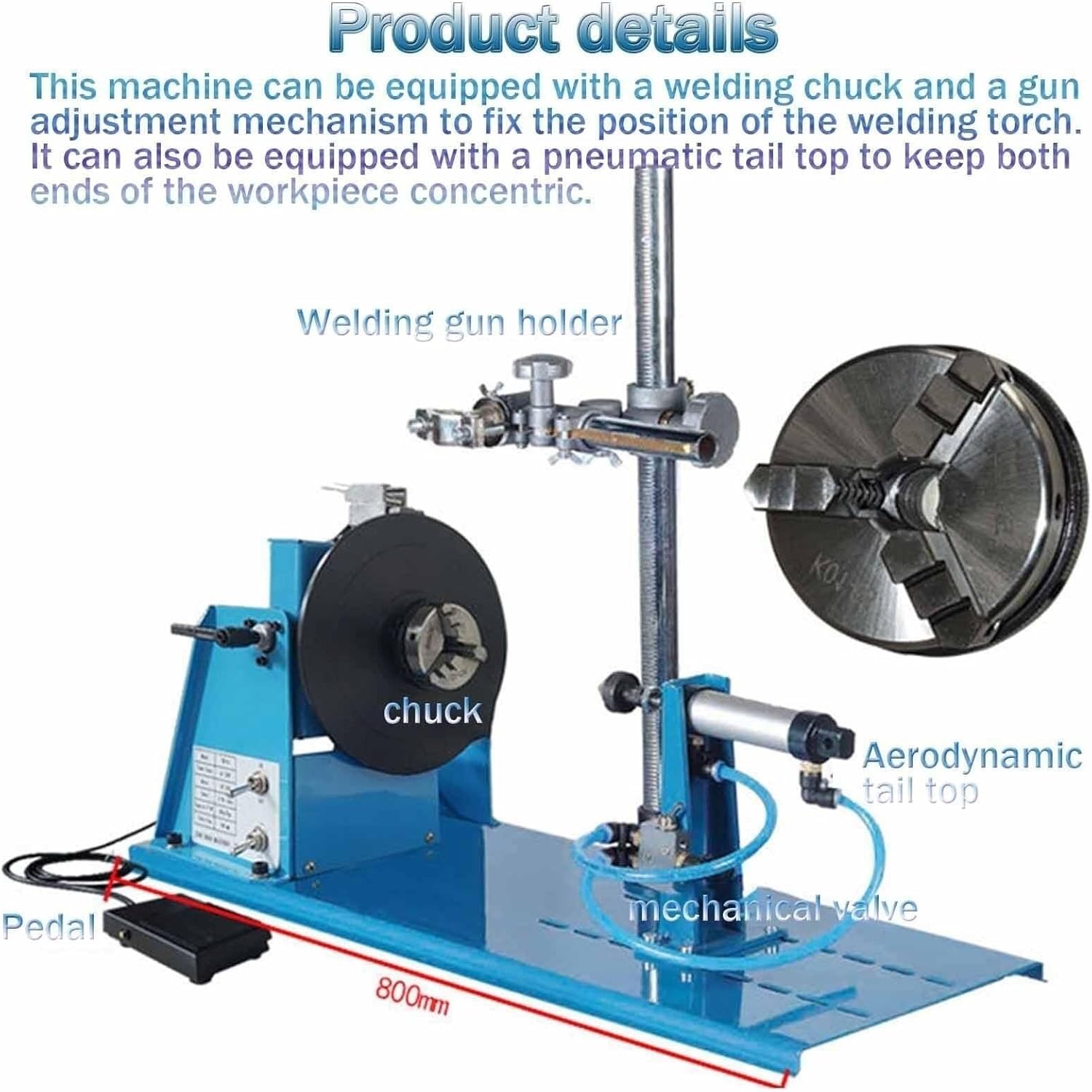

• [Fixed welding gun position] The welding turntable can be equipped with a welding chuck and a welding gun adjustment mechanism to fix the welding gun position. It can also be equipped with a pneumatic tail top to keep the two ends of the workpiece concentric.
