Freud 3-15/16" (Dia.) Insert Cutter Backcutter For Double Raised Panels for 3/4" Stock (UP230-IC)

3-15/16" (Dia.) Insert Cutter Backcutter For Double Raised Panels for 3/4" Stock

• Specs: Overall Dia. 3-15/16", Bore Diameter 1-1/4", Carbide Height 3/8", Large Radius 13/64"
• Advanced 2+2 Cutting Design includes two large cutters that shear upward and two smaller cutters that shear downward for splinter-free, flawless finishes.
• Red Anodized Protective Coating protects the aluminum body from abrasion extending the life of the shaper cutter.
• Versatile Interchangeable Knives are easily interchanged during sharpenings for reduced tooling costs and minimal downtime.
• Exclusive Freud TiCo Hi-Density Micro-Grain Carbide blend of Titanium Cobalt carbide allows for a sharper cutting edge, with minimal wear for dramatically longer cutting life.
• Freud TiCo carbide tips have Superior Shear Angles that slices through wood fibers, leaving cross-grain cuts with virtually no sanding required.
• 2.0mm Thick Sharpener friendly carbide extends the shaper cutter’s life through multiple sharpenings outlasting standard brazed carbide.
• Kickback-Reducing Shoulder Design restricts the tooth bite to 1.1mm, reducing the effects of overfeeding for more controlled, clean cuts.
• Ultimate Precision Computer Balancing with strict tolerances are achieved by using computer-based applications to balance all cutters for super smooth, chatter-free cutting.

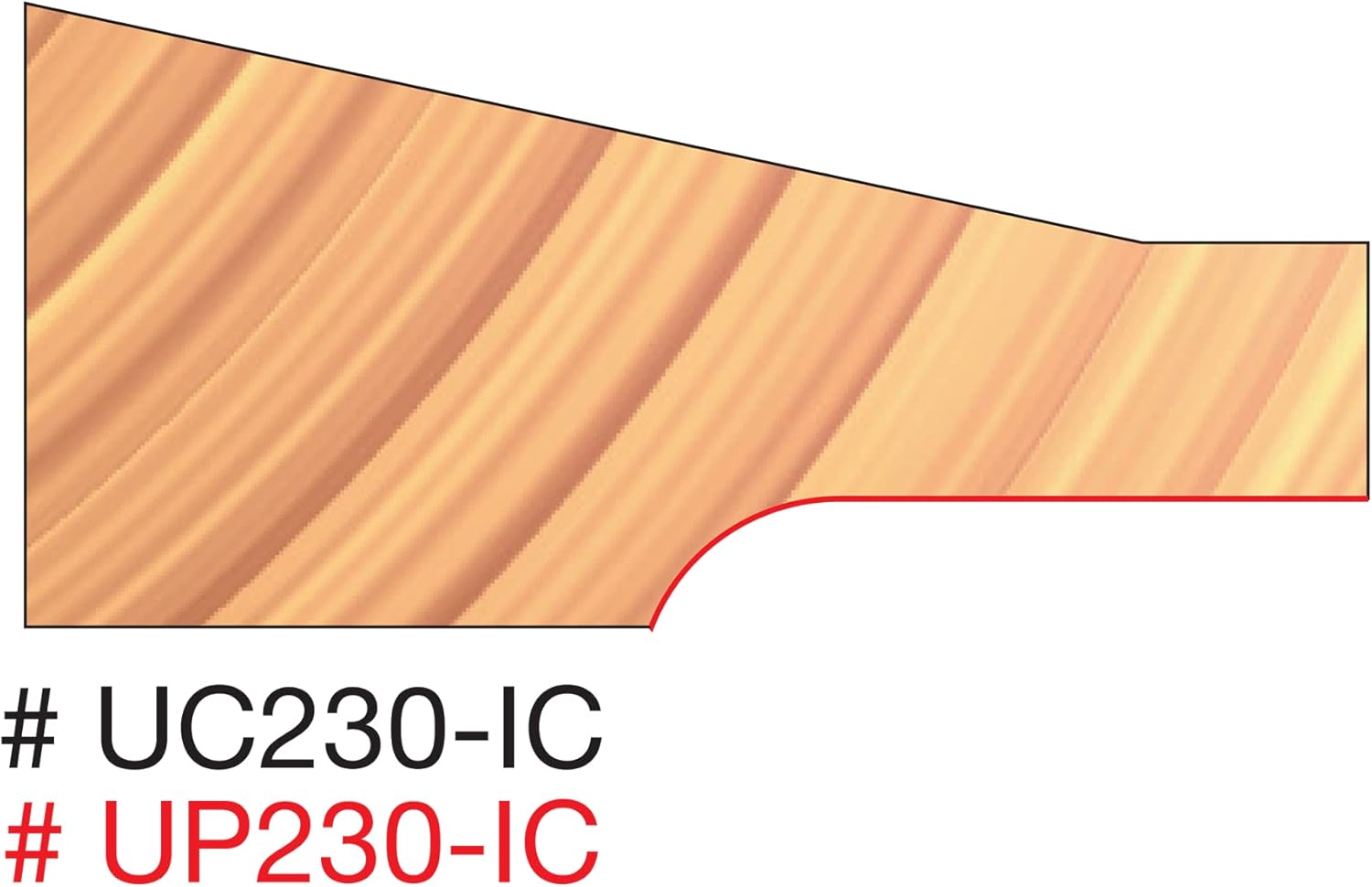

• These cutters leave a decorative profile on the back side of the panel making the panel flush with both the front and back of the rails and stiles. Use the 1-1/4" bore cutters with Panel Cutters UP200-IC through UP208-IC.
