63Amp 110V AC Mini ATS Automatic/Manual Transfer Switch, 2Pole G2R Solar Auto Dual Power Changeover Switch for Home, Din Rail Mounted 50/60Hz CE Certified for Rv, Lv, Cn Public/Backup Power
4.1 (62 items)
Limited Time SaleUntil the end
22
20
34
US$23.39 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$15.60
Product details
| Management number | 210751562 | Release Date | 2026/04/02 | List Price | US$15.60 | Model Number | 210751562 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- FUNCTIONS AND FEATURES: The Mini ATS G2R transfer switch is a PC-class, low-frequency transfer switch designed for automatic or manual switching between two power sources. mini ats can detect the functioning of either the primary or backup power source. transfer switch switches power sources (either mains or inverter) within 0.05 seconds, ensuring uninterruptible power supply. If the primary power source experiences an abnormality, the backup source immediately takes over, ensuring continuity, reliability, and safety. When the primary power source returns to normal, 63Amp ats transfer switch automatically switches back to the primary source.
- AUTOMATIC/MANUAL DUAL MODE SWITCHING: AC 110v automatic transfer switch to use the AUTOMATIC MODE, make sure the left switch must be in Auto and the right handle must be in Ⅰ. When the normal power supply (Ⅰ) is normal, ⅠU (green light) is always on; when the normal power supply (Ⅰ) is abnormal, ⅠU (green light) goes out and switches to the automatic power supply (Ⅱ) within 0.05 seconds, ⅡU (red light) is on.When the normal power supply (Ⅰ) returns to normal, G2R ats will automatically switch from the backup power supply (Ⅱ) back to the normal power supply.
- 63A automatic transfer switch to use the MANUAL MODE, make sure the left switch is in Manual. If you choose power supply (Ⅰ), manually operate the right handle to make the switch in (Ⅰ), ⅠU (green light) is on; if you choose power supply (Ⅱ), manually operate the right handle to make the switch in (Ⅱ), ⅡU (red light) is on
- 110V OVER AND UNDER-VOLTAGE PROTECTION: 2Pole dual power automatic transfer switch 110v designed for home track installation, mini ats transfer switch cnc G2R 4P , the input terminal can be connected to 1 neutral wire (N) 3 live wires (L), dedicated to PZ30 distribution box. dual power automatic transfer switches is suitable for 50/60Hz dual power grid. dual power switch working current is between 6A-63A. 110V/50Hz Undervoltage value: 85V, Recovery value: 95V; Overvoltage value: 145V, Recovery value: 130V (± 5V)

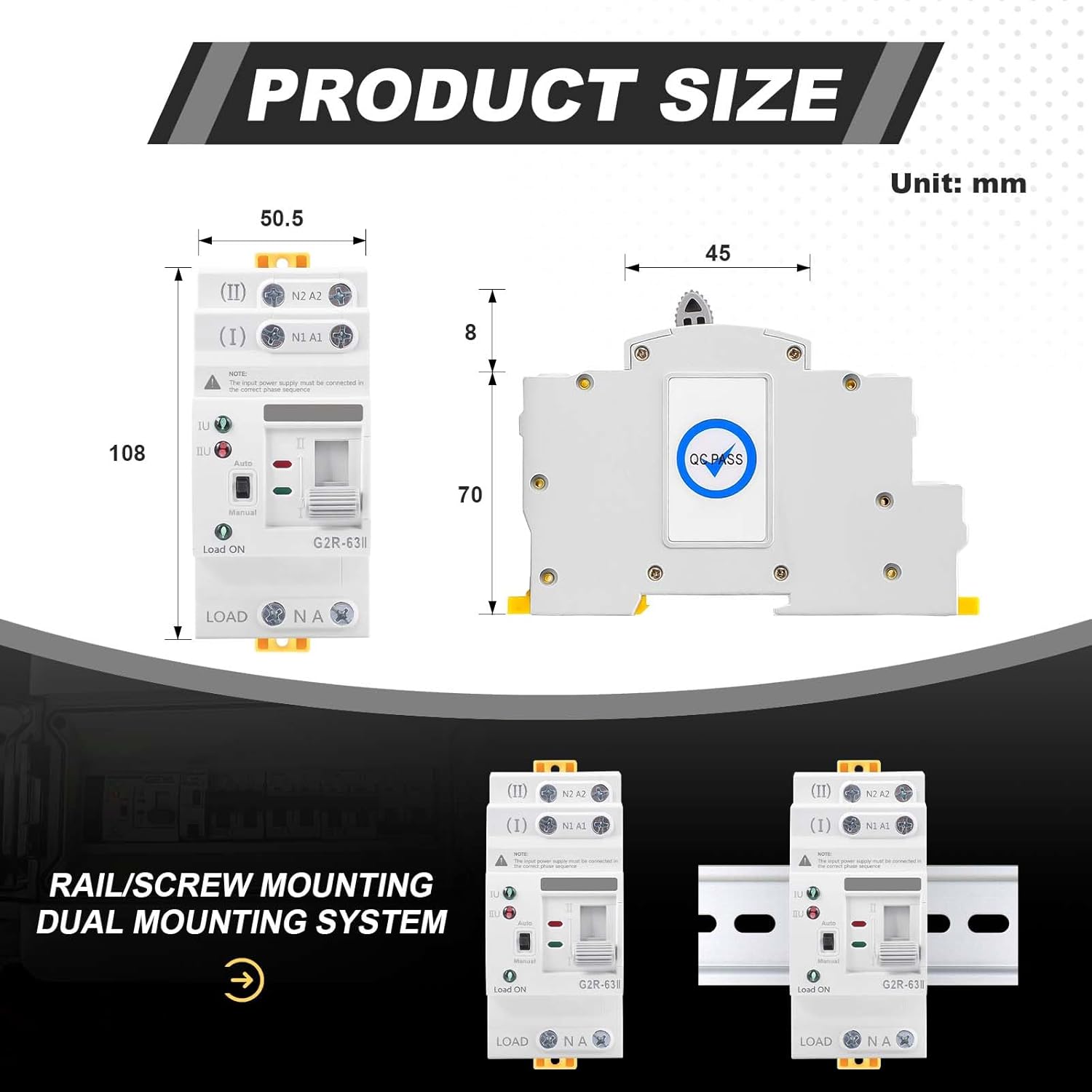

- DIN RAIL MOUNTING: Din rail automatic transfer switch Compact design Applies to 35mm rail, Spring buckle Tolerant to 5Hz~150Hz mechanical vibration, ATS change over switch Through the DIN rail standardized design, Ats achieves industrial-grade reliability with ready-to-install and worry-free maintenance
- MULTI-SCENARIO APPLICATION：This dual-power automatic transfer switch (ATS) ensures a stable power supply and is suitable for use in situations where power outages are unacceptable. ac 110v automatic transfer switch is suitable for home power protection, small shops/convenience stores, medical equipment power supply, data centers and emergency systems, uninterrupted production line operation, photovoltaic microgrids, and indoor Rv, Lv, Cn Public/Backup Power and outdoor
- QUALITY ASSURANCE, WORRY-FREE AFTER-SALES SERVICE: 2Pole 63Amp 110V AC G2R Mini ATS Automatic/Manual Transfer Switch Made of high-strength PA6 engineering plastic, with a flame retardant rating of 94V-2 and an impact strength of 8kJ/m², it is lightweight and sturdy, with a mechanical life of more than 8,000 cycles and an electrical life of more than 1,500 cycles. If you encounter any problems during installation or use, our professional engineers will answer your questions.
| Model | ATS G2R 2P 63A 110V AC |
|---|---|
| Voltage | 110 Volts (AC) |
| Brand Name | Sezbaifles |
| Unit Count | 1.0 Count |
| Part Number | ATS G2R |
| Manufacturer | Sezbaifles |
| Mounting Type | DIN Rail Mount |
| Current Rating | 63 Amps |
| Number of Poles | 2 |
| Included Components | 1PC Transfer Switch G2R 63A 110V and Manual |
| Circuit Breaker Type | GFCI |
